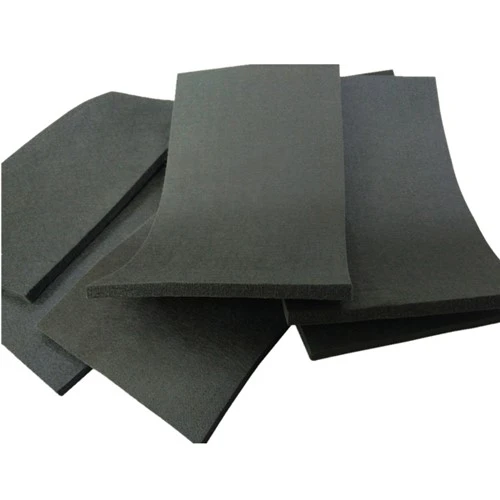

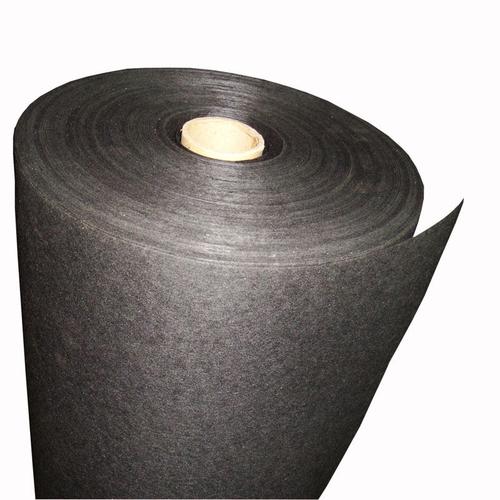

PAN Graphite Felt

With polypropylene and Base graphite felt As the basis for materials, Made by a special process high temperature graphitization, Have the performance such as Light Weight, High Carbon content, Resistance cauterization, Resistant to corrosion, High purity, High temperature without volatile, Small coefficient of thermal conductivity, Non Deforming on high temperature. It is wonderful thermal insulation material.

PAN Graphite felt has a good oxidation resistance. the structure of carbon materials without the graphitization is a disorderly layer structure, and all kinds of structure of the defects exist that make its has a lager level spacing, so, it easy to suffer the attack from oxygen atom and oxidation. But the graphite felt, after high temperature treatment, has perfect lattice and ordered three dimensional arrangement greatly reduce level spacing, it help the product avoid the attack of the oxygen atom and Greatly enhance oxidation resistance.

Index



Density: 0.13~0.15g/cm³
Carbon: ≥99%wt
Ash: ＜100ppm
Thermal conductivity: 0.08-0.14w/m.k
Work Temperature: 2500℃
Electrical Resistivity: 1.60~2.00×10-3Ωm
Size: Customer request
Normal size:
Wide: 1200 mm or1000mm
Thickness: 10mm(mormal),8mm,5mm

1. Lower thermal conductivity and specific heat help improve the hear insulation and save energy consume and reduce the duration of rise or lower temperature when equipments running well.

2. Not adsorbed moisture then beneficial to reduce the time as extract vacuum.

3. High application temperature up to 2500℃in vacuum furnace and up to 3000℃in inert.

4. High purity that have no pollution effect upon the treated material.

5. Easily to processing may be cut into the size by a small knife.

Application



1.*Aerospace industry: Hot isostatic process furnace, heat treating, sintering, brazing and autoclave furnace. *Semiconductor trades: Silicon puller and gallium arsenate produces.
2.*Metal heat treatment:Heat treatment furnace,and sintering, brazing furnace.
3.*Carbon fiber manufacture: Carbonizing furnace and graphitizing furnace with induction or resistance hearing.
4.*Composite fabrication: CVD or CVL equipments for deposition or infiltrantion by pyrolytic carbon and pyrolytic graphite or other suitable elements.
5.*Energy source material: Used for vanadium or other redox flow buttery.

• Superior thermal properties over a wide range of operating temperatures

• High stability with low shrinkage

• Flexible and easy to handle

• Low density and thermal mass

• Greater efficiency in heating and cooling

• Low thermal conductivity

• Uniformity throughout the material

• Available in different lengths, widths, and thickness

• Easily cut to fit specific size requirements

• Can be halogen purified to reduce impurity levels into the ppm range

PAN graphite felt is incredibly durable and able to withstand high temperatures, making it ideal for use in industries such as aerospace and electronics. Secondly, it is highly resistant to chemical corrosion, meaning that it can be used in harsh environments without being damaged. Additionally, the felt is lightweight and easy to work with, making it an excellent choice for designers and engineers looking to create intricate parts and components.

Another notable advantage of PAN graphite feltis its thermal conductivity. The material has a very low thermal resistance, meaning that it is highly effective at transferring heat. This makes it perfect for use in applications where heat dissipation is essential, such as in electronics and power generation.

Furthermore, PAN graphite felt is also eco-friendly and sustainable. The manufacturing process uses materials that are easily renewable, and the felt itself is highly recyclable. This is an important consideration for industries looking to reduce their environmental impact and promote sustainable practices.

In conclusion, the advantages of Panji felt graphite felt cannot be overstated. From its durability and resistance to chemical corrosion, to its thermal conductivity and eco-friendliness, this material is a clear choice for a variety of industrial applications.
